Copper Clad Laminate Inspection System
CCL appearance quality monitoring: The inspection machine automatically grades results, saving labor, boosting production by 40%, maintaining quality, and reducing complaints.
Application
For CCL and X/X inspection
Detectable Defect Types

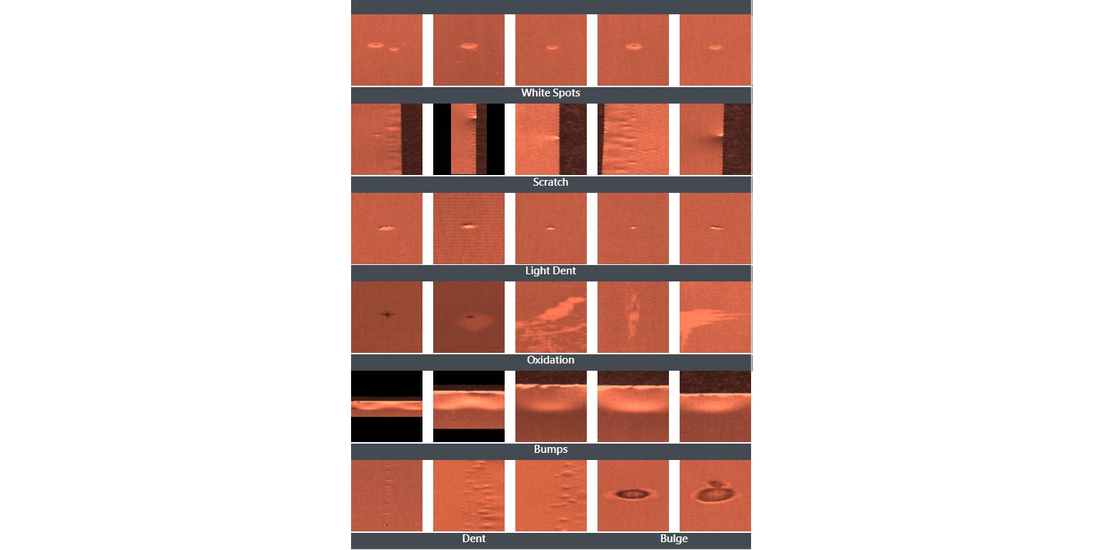

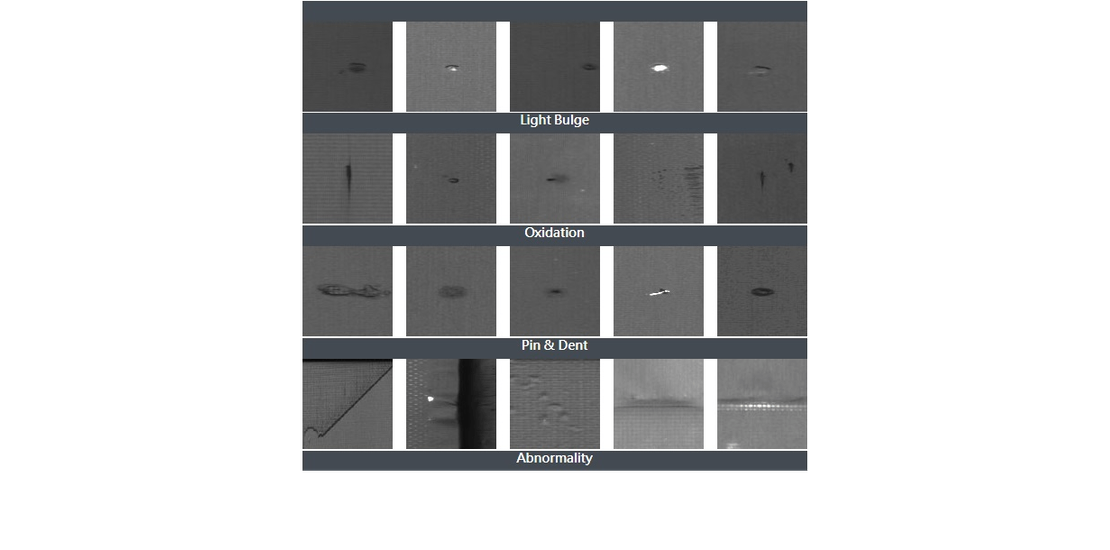

Pits & Dents, Scratches, Light depressions, Creases, Spots, Copper bulges, Oxidations, Sparkles, Oil stains, Handling kinks, Plate marks
Features
• Inspects 100% of the CCL and X/X
• Detects defects as small as 50μm
• Inspection speed up to 60 m/min, depending on the configurations

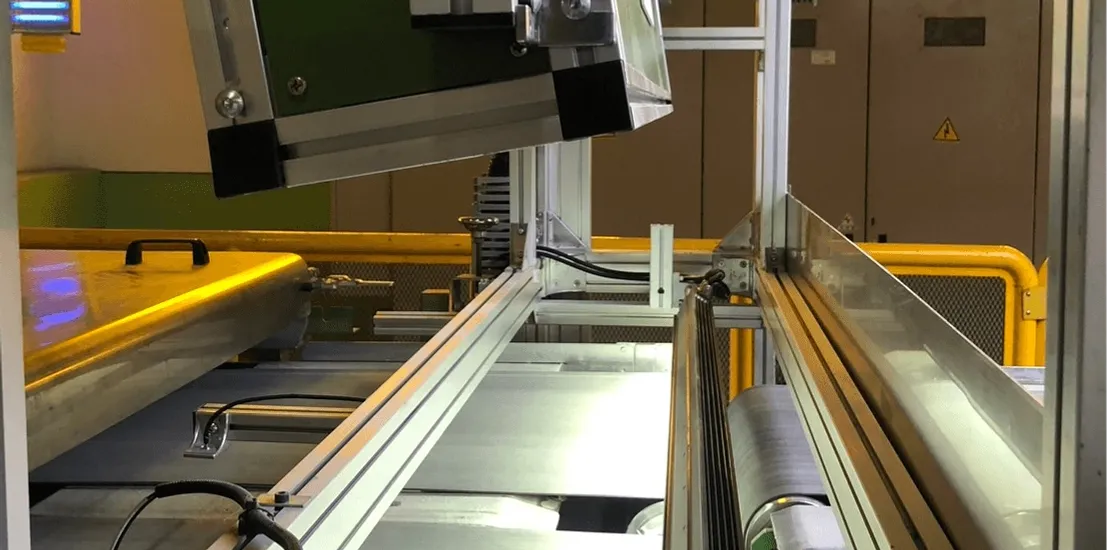

• Could be positioned in-line as part of a production process, or stand-alone as a separate inspection unit

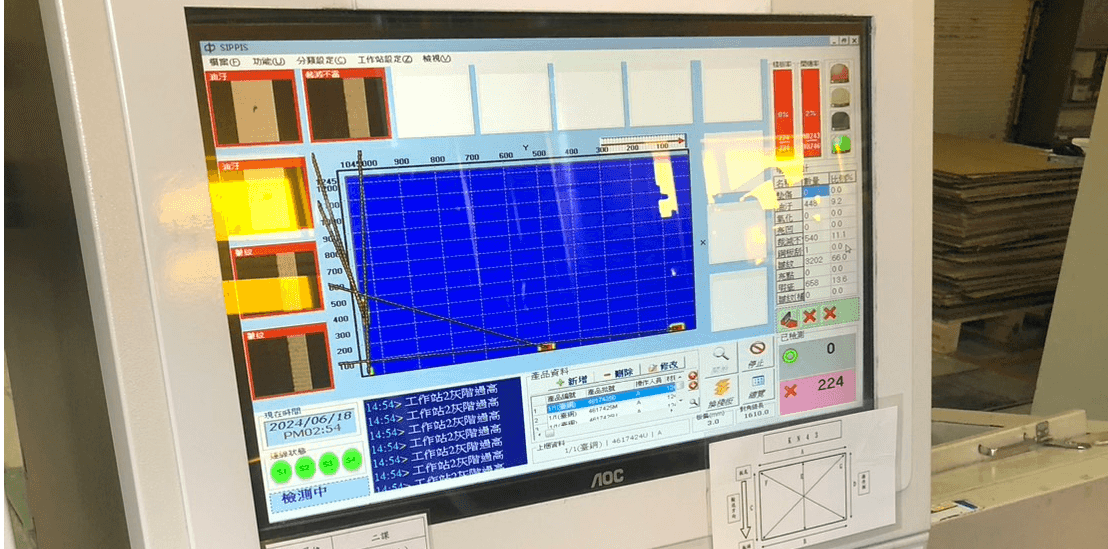

• Defect map and images are displayed on the monitor in real-time
