Paper Inspection System

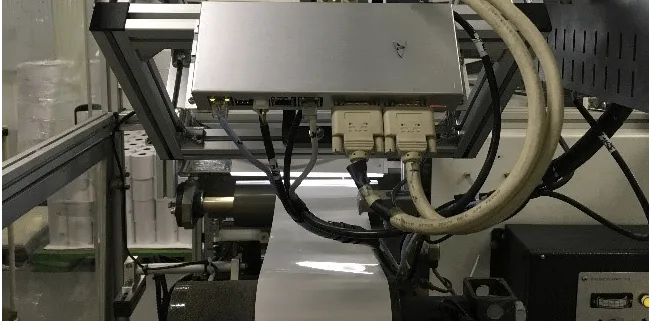

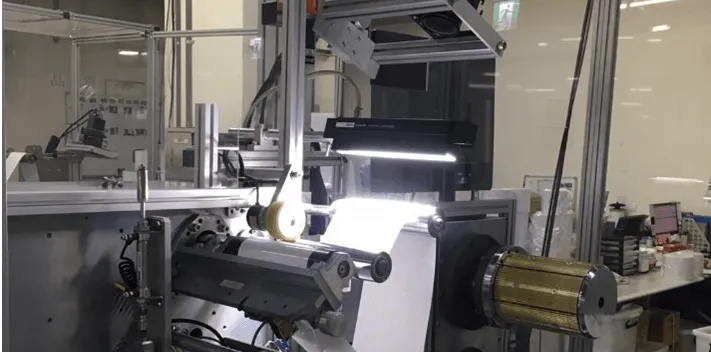

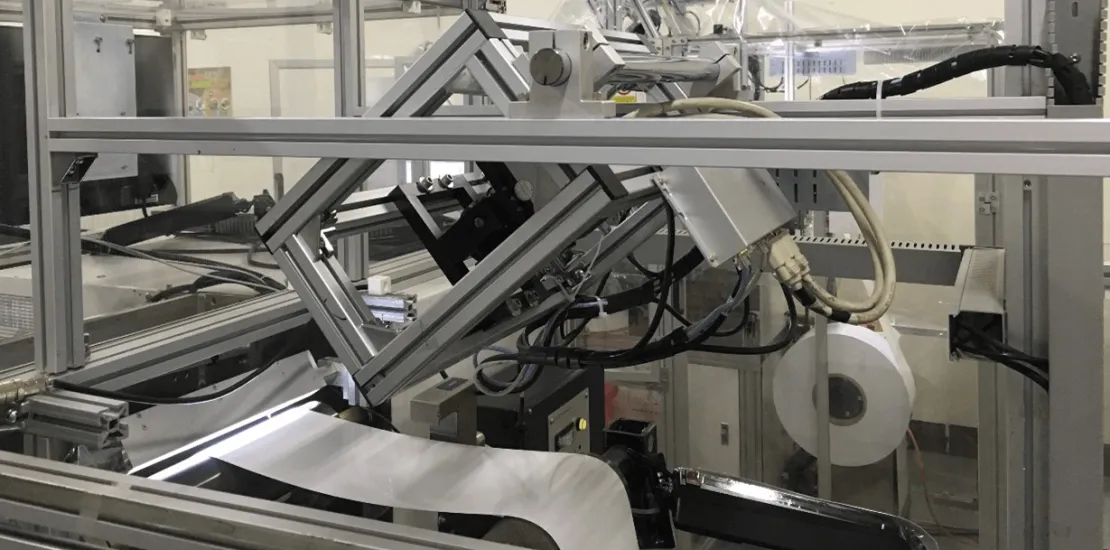

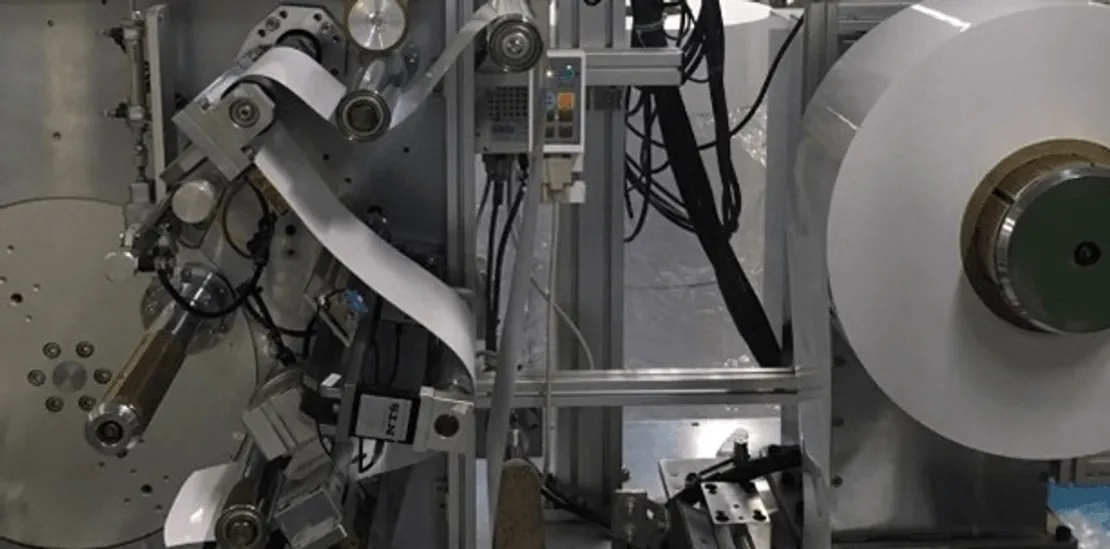

A system designed for detecting paper surface defects inspects paper reels online in high-speed motion. It automatically adjusts brightness based on thickness and color to improve detection rates, providing stable and reliable inspection.

Application

• For industrial paper

• For general use paper

Detectable Defect Types

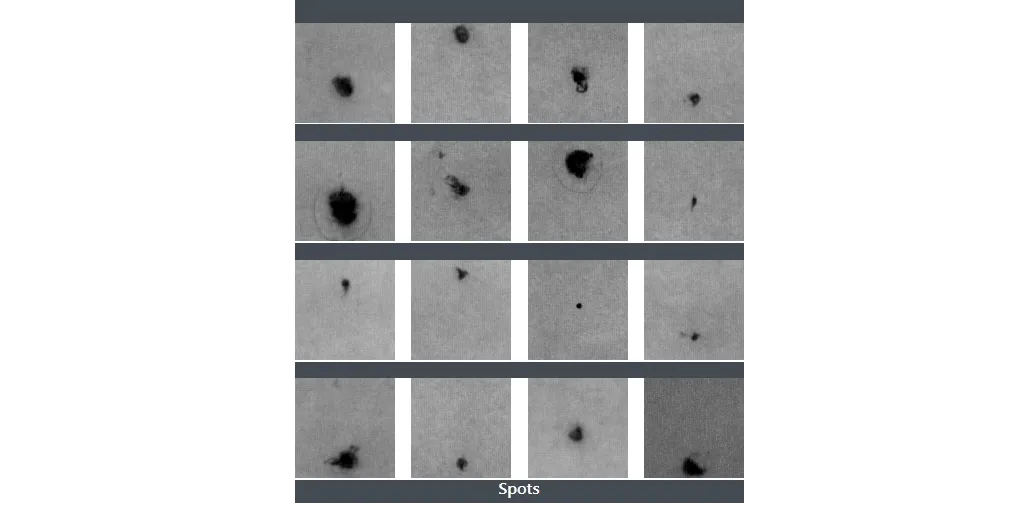

Scratch, Print, black hole, hole, fold etc..

Features

•  Object under inspection paper
　Length 6000mm
　Thickness 0.05~10mm
•  Specifications
　Inspection accuracy above 50μm
•  Inspection speed 150~1000m/min　

•  Horizontal shift +- 0.7mm/m
