Glass Fabrics Inspection System
Glassfiber Inspection System appearance quality monitoring detects various defects and sets rejection criteria based on defect size.
Application
• For E-glass fabrics inspection
• For glass fiber mat
• For kraft

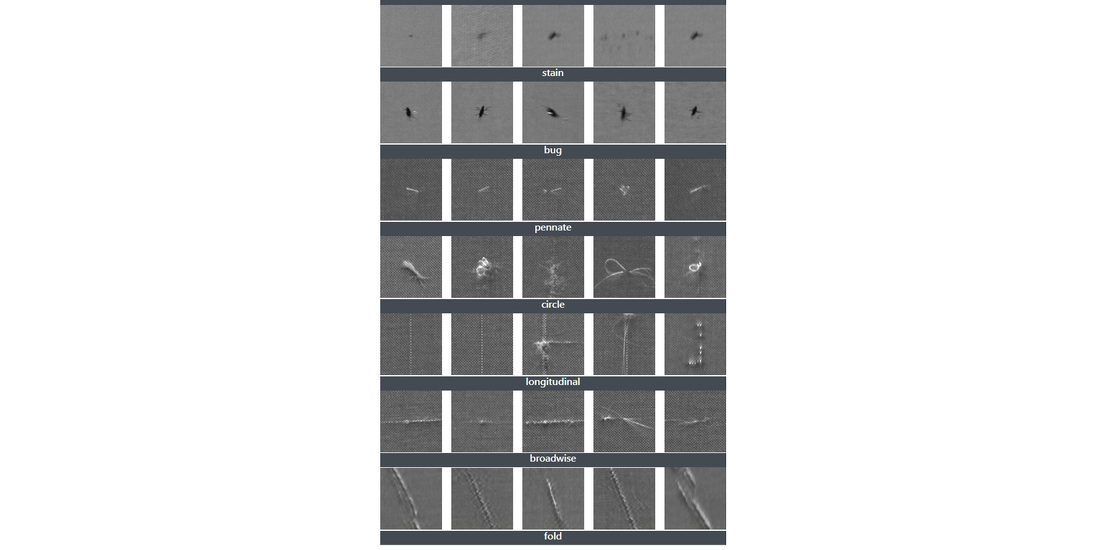

Detectable Defect Types
Broken filament, Broken picks, Fuzz, Knots, Spots, Dirt, Width short, Unraveled edge, Holes
Features
• Inspects 100% of the fabric
• Detects defects as small as 100μm
• Handles fabric width up to 200 cm
• Inspection (fabric) speed up to 120 m/min, depending on the configurations
• Could be positioned in-line as part of a production process, or stand-alone as a separate inspection unit
• Defect map and images are displayed on the monitor in real-time
